How to setup LACP between FortiGate and Cisco Switch

This article describes in a simple way a glimpse of the configuration of LACP between the FortiGate firewall and Cisco Switch.

CISCOFORTINET

11/30/20242 min read

The LACP is very common in enterprise environment due to your simplicity to deploy and great advantage to use it. Redundancy and increase of bandwidth are some of the benefits. So, today let's take as example a configuration of a 802.3AD, LACP or Ether Channel, between a FortiGate and a Cisco Switch. That last one using an IOS with 15.0(2)SE11 firmware version.

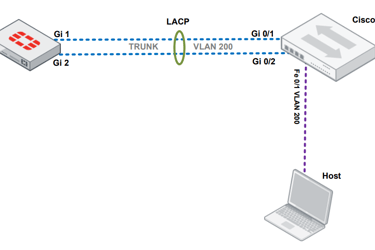

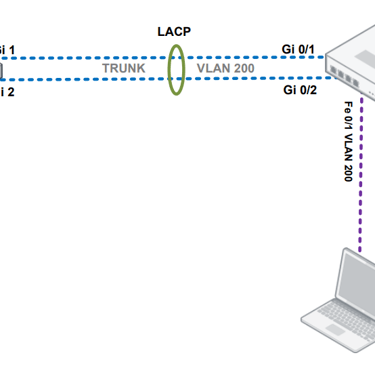

The topology

FortiGate Configuration

config system interface
    edit "LACP-FGT"
        set vdom "root"
        set type aggregate
        set member "internal1" "internal2"
        set lacp-mode active
        set lacp-speed fast
        set algorithm L4
        set min-links 1
        set description "LAG para <SWITCH>"
        set device-identification enable
        set lldp-transmission enable
        set lldp-reception enable
        set role lan
    next
end

config system interface
    edit "VLAN_200"
        set vdom "root"
        set interface "LACP-FGT"
        set vlanid 200
        set ip 10.200.200.1 255.255.255.0
        set allowaccess ping
        set device-identification enable
        set role lan
    next
end

Cisco Switch configuration

hostname <HOSTNAME>
lldp run
vlan 200
name VLAN_200
vlan 997
name NATIVE
interface Port-channel1
description FGT_LINK
switchport mode trunk
switchport trunk native vlan 997
switchport trunk allowed vlan 200
spanning-tree bpdufilter enable
interface range GigabitEthernet0/1-2
description FGT_LINK_member
switchport mode trunk
switchport trunk native vlan 997
switchport trunk allowed vlan 200
lacp rate fast
channel-group 1 mode active
port-channel load-balance src-dst-ip
interface GigabitEthernet0/10
description VLAN_200
switchport mode access
switchport access vlan 200
spanning-tree portfast
spanning-tree bpduguard enable

LLDP as a PLUS

FortiGate LLDP

To configure device identification on an interface:
config system interface
edit LACP
set device-identification enable
next
end

To configure LLDP reception globally:
config system global
set lldp-reception enable
end

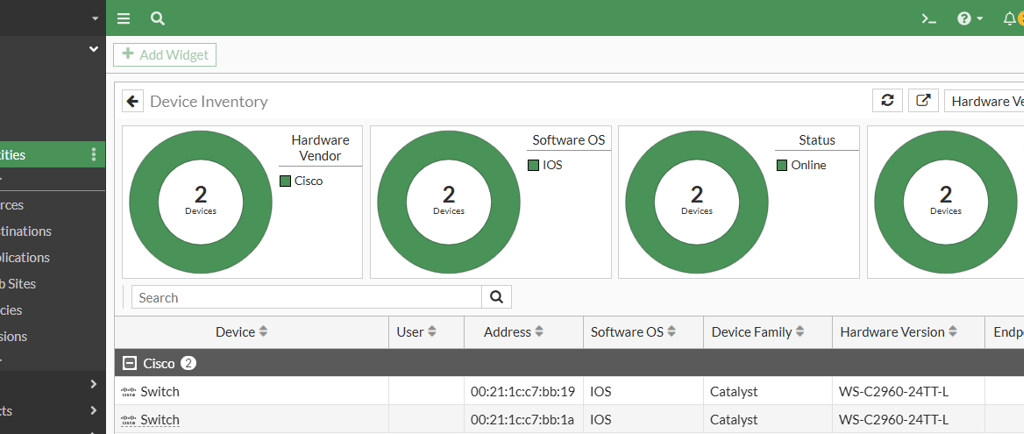

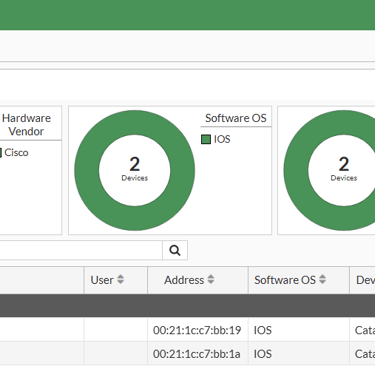

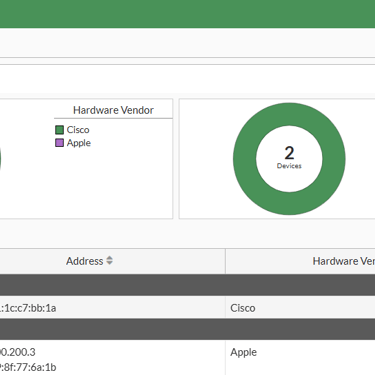

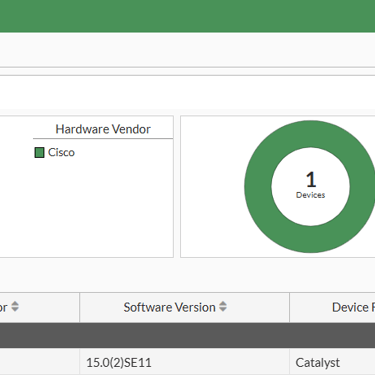

To view the received LLDP information in the CLI:

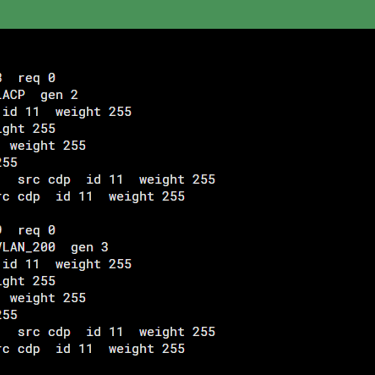

# diagnose user device list

Cisco LLDP

As default, LLDP is not enabled.

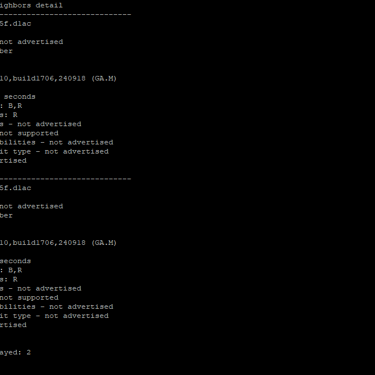

Switch#show lldp neighbors detail
% LLDP is not enabled

Switch#configure terminal
Switch(config)#lldp run
Switch(config)#end
Switch#

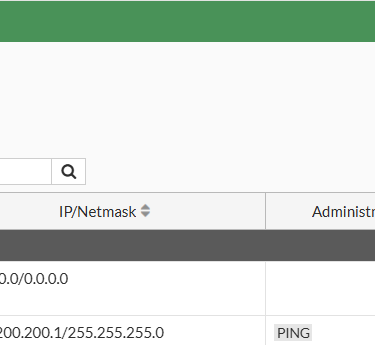

Configuring the VLAN inside the LACP interface

FortiGate

techcyber # config system interface
techcyber (interface) # edit "VLAN_200"
techcyber (VLAN_200) # show
config system interface
edit "VLAN_200"
set vdom "root"
set ip 10.200.200.1 255.255.255.0
set allowaccess ping
set device-identification enable
set role lan
set interface "LACP"
set vlanid 200
next
end
techcyber (VLAN_200) #

Cisco Switch


Creating VLAN:
Switch#configure terminal
Switch(config)#vlan 200
Switch(config-vlan)#name VLAN_200
Switch(config-vlan)#no shutdown
%VLAN 200 is not shutdown.
Switch(config-vlan)#exit

Assigning VLAN on physical interface to host:
Switch(config)#interface fastEthernet 0/1
Switch(config-if)#switchport mode access
Switch(config-if)#switchport access vlan 200
Switch(config-if)#no shutdown
Switch(config-if)#description VLAN_200
Switch(config-if)#exit

Added VLAN on LACP interface in trunk mode:
Switch(config)#interface Po1
Switch(config-if)#switchport mode trunk
Switch(config-if)#switchport trunk allowed vlan 200
Switch(config-if)#no shutdown
Switch(config-if)#description FGT_LINK
Switch(config-if)#end
Switch#

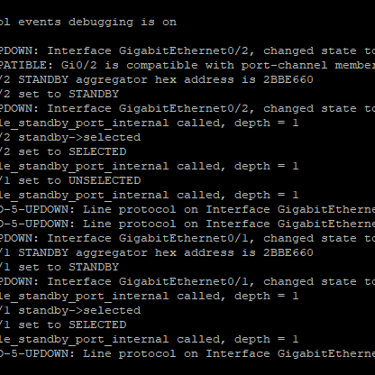

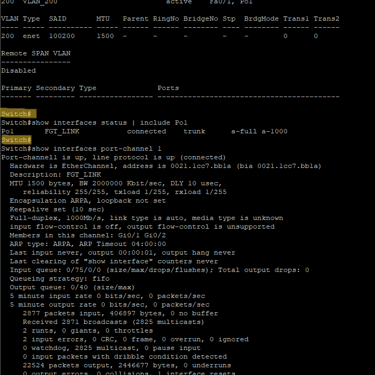

Final Considerations


In addition to the configurations made here in the article, LACP has two more parameters that are very important for its operation: the operating mode and the negotiation speed. Note that these parameters were not used and LACP worked as expected. However, there may be scenarios in which it will be necessary to change the values ​​of these parameters for LACP to work properly.

Operating Modes

Active Mode: The initiating device sends LACP packets to establish aggregation.
Passive Mode: The device waits for LACP packets to establish aggregation.

Negotiation Speeds

Fast: Negotiation every 1 second.
Slow: Negotiation every 30 seconds.
